A review of Semantic Segmentation architectures

A review of Semantic Segmentation architectures

Introduction

In my previous post, I introduced the task of semantic segmentation along with introductory experiments on the benchmark dataset Cityscapes.

This post will dig deeper into the different architectural choices for semantic segmentation, describing their building blocks, advantages and shortcomings.

The following table provides an overview of the architectures that will be developed in this post:

ArchitectureYearMain InnovationReference Paper
FCN (Fully Convolutional Networks)2015First architecture to use fully convolutional layers for segmentation.Long, Shelhamer, and Darrell, CVPR 2015
U-Net2015Symmetric encoder-decoder structure with skip connections.Ronneberger, Fischer, and Brox, MICCAI 2015
SegNet2015Efficient skip connections that only share pooling indexes.Badrinarayanan et al., 2015
DeepLab v12015Introduced atrous convolutions to control resolution.Chen et al., ICLR 2015
PSPNet (Pyramid Scene Parsing Network)2017Pyramid pooling module to capture global context.Zhao et al., CVPR 2017
DeepLab v22017Atrous Spatial Pyramid Pooling (ASPP) for multi-scale context.Chen et al., PAMI 2018
DeepLab v32017Enhanced ASPP with global pooling and wider range of dilations.Chen et al., arXiv 2017
DeepLab v3+2018Added decoder module to DeepLab v3 for better boundary refinement.Chen et al., ECCV 2018
ViT2020Applied transformers to computer vision tasks. This is not actually used for semantic segmentation but paved the road.Dosovitskiy et al., 2020
SegFormer2021Transformer-based architecture for segmentation.Xie et al., NeurIPS 2021
Swin Transformer2021Hierarchical Transformer with shifted windows for efficient modeling.Liu et al., ICCV 2021

The Encoder-Decoder

With the exception of the transformer based methods, the overwhelming majority of semantic segmentation architectures follow an encoder-decoder structure:

Pasted image 20240605063627.png

In this setup, the network is split in two main components:

The encoder (aka backbone) extracts features from the input image through convolutional layers.

  • Standard encoders used for other tasks, such as image classification, can be used here. VGG and ResNet are popular choices, and are often pre-trained on generic datasets such as ImageNet.
  • The output of the encoder is a feature representation of the input image in the form of an input map. A typical encoder could, for example, take as input an image of shape (256,256,3) and output a feature map of shape (16,16,512).
  • A typical encoder, as shown in the example above, chains convolutions and pooling layers, reducing the spatial dimension of the image significantly while extracting high level features.

The decoder takes the encoded feature representation, and produces a segmentation mask.

  • Usually upsampling layers and convolutions are used to restore the original resolution of the image
  • Many architectures employ skip connections, which greatly aids to recover the fine details lost during the contracting encoder path.

At first, the encoder-decoder design seemed counter-intuitive to me. Why would we want to "compress" the data only to later on "expand" it? Why would we want to introduce this bottleneck in the middle? It turns out there are many good reasons to use this pattern:

  1. Hierarchical feature extraction: The encoding process allows the network to capture and condense essential features and context from the input data at multiple scales.
  2. Global context: By progressively downsampling, the network can aggregate information over larger regions of the input image, capturing global context which is often critical for making accurate predictions. For example, recognizing that a specific region is part of an organ might require understanding the broader context of surrounding regions.
  3. Spatial Understanding: When the data is upsampled in the decoder, this global context is combined with high-resolution features from the encoder via skip connections, facilitating precise localization and segmentation.
  4. Efficient Computation: Compressing the data reduces the dimensionality, making the computations more efficient. This can lead to faster training and inference times, and also reduces the memory requirements.
  5. Noise Reduction: The bottleneck can act as a form of implicit regularization by filtering out noise and less important details, thus helping the network to generalize better from limited data.

Fully Convolutional Network (FCN)

Original publication: Fully Convolutional Networks for Semantic Segmentation - Long, Selhamer, Darrell. MMsegmentation model zoo: link to repo

FCNs were a breakthrough architecture for semantic segmentation tasks. While not the absolute first, they were one of the earliest and most influential approaches to leverage deep learning for this purpose.

FCNs replaced fully-connected layers with convolutional layers. This allowed them to process images of varying sizes and output a pixel-wise classification, matching the input image dimensions.

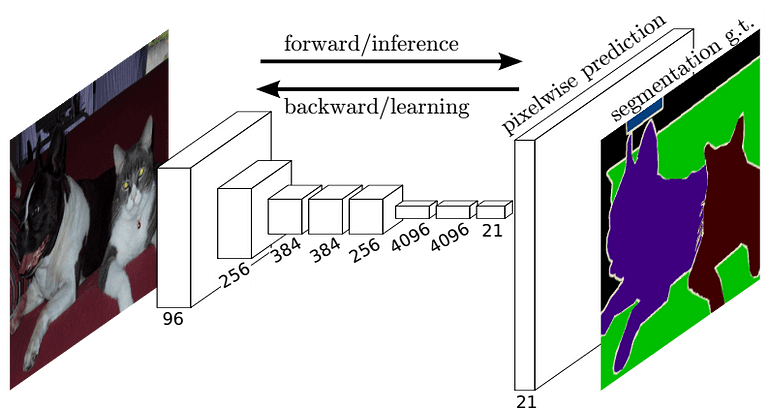

Pasted image 20240606055901.png Illustration from the original paper

The encoder path progressively downsamples the input image via convolutions and pooling. Any backbone could be used here (VGG, ResNet, etc); the choice also depending on the desired size of the network.

In the picture, we can see an encoder that progressively reduces the spatial dimension, while increasing the number of channels. The final output of the encoder is a feature map with 4096 channels.

The decoder then applies 1x1 convolution layers to project the high-level features from the encoder to a number of channels equal to the number of classes you want to segment (in this example, 21).

The original FCN relied on simply upsampling the feature maps in the decoder path to recover spatial information. This approach, however, could lead to a loss of fine-grained details. Later architectures like U-Net and DeepLab incorporated skip connections to address this issue.

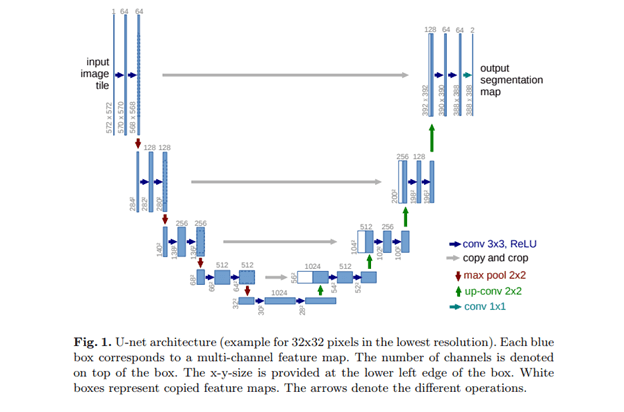

UNet

Original paper: U-Net: Convolutional Networks for Biomedical Image Segmentation - Olaf Ronneberger, Philipp Fischer, and Thomas Br Original use case: Biomedical image segmentation

Pasted image 20240607055016.png

Quoting the very clear explanation of the paper:

The network architecture (...) consists of a contracting path (left side) and an expansive path (right side). The contracting path follows the typical architecture of a convolutional network. It consists of the repeated application of two 3x3 convolutions, each followed by a rectified linear unit (ReLU) and a 2x2 max pooling operation with stride 2 for downsampling. At each downsampling step we double the number of feature channels.

Every step in the expansive path consists of an upsampling of the feature map followed by a 2x2 convolution (“up-convolution”) that halves the number of feature channels, a concatenation with the correspondingly cropped feature map from the contracting path, and two 3x3 convolutions, each followed by a ReLU. (...) At the final layer a 1x1 convolution is used to map each 64-component feature vector to the desired number of classes. In total the network has 23 convolutional layers.

The crucial innovation here is the introduction of skip connections from the contracting path to the expansive path. They connect the encoder and decoder layers with the same resolution, allowing the network to use both the high-resolution features from the downsampling path and the upsampled features in the upsampling path. This helps to recover spatial information that might be lost during downsampling.

✅ High performance, able to produce fine grained predictions. ❌ Sharing entire feature maps as skip connections involve high use of memory and slower training.

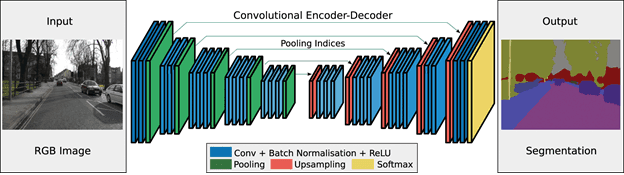

SegNet

Original Paper: SegNet: A Deep Convolutional Encoder-Decoder Architecture for Image Segmentation - Vijay Badrinarayanan, Alexander Kendall, Animabadi Ramesh

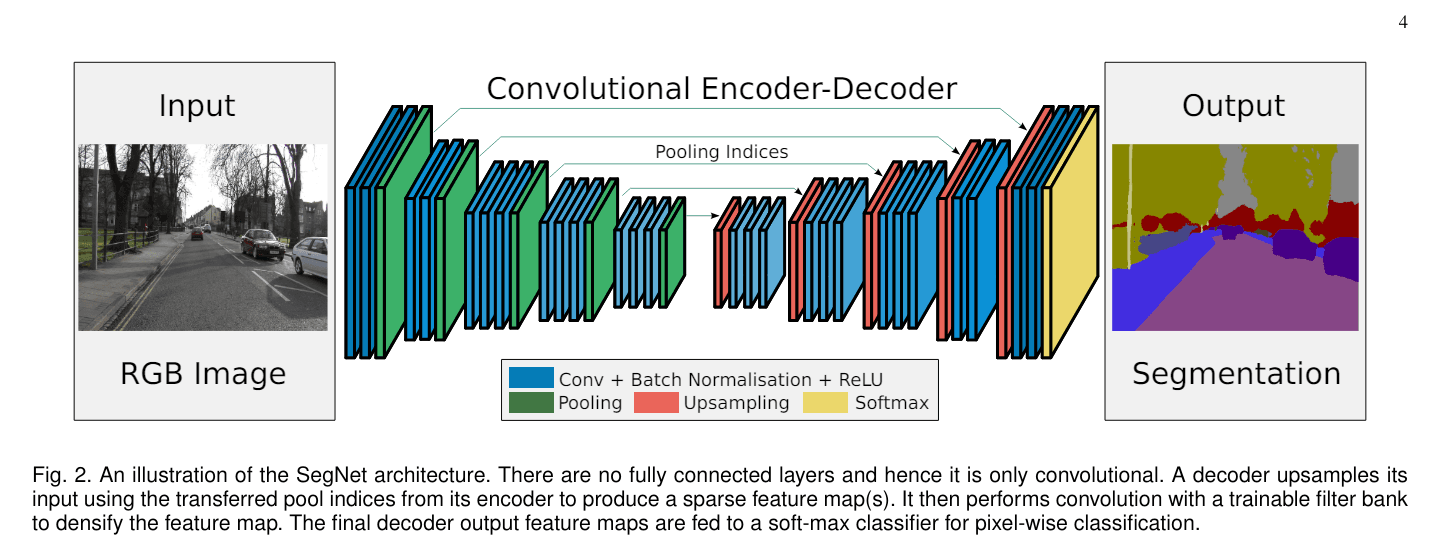

Pasted image 20240607060140.png

In the paper, the authors describe how the encoder part is quite standard:

The encoder network in SegNet is topologically identical to the convolutional layers in VGG16. We remove the fully connected layers of VGG16 which makes the SegNet encoder network significantly smaller and easier to train than many other recent architectures

The key difference with UNet is that skip connections do not share entire feature maps. Instead, each time that max pooling takes place on the encoder side, the indexes where the max feature was located are stored and conveyed to the appropriate decoder layer. This is much more memory efficient.

(...) storing only the max-pooling indices, i.e, the locations of the maximum feature value in each pooling window is memorized for each encoder feature map. In principle, this can be done using 2 bits for each 2 2 pooling window and is thus much more efficient to store as compared to memorizing feature map(s) in float precision.

The decoder progressively upsamples the image in a peculiar way. It makes use of the memorized max-pooling indexes to produce sparse maps, which are in then convolved to produce dense (non sparte) feature maps:

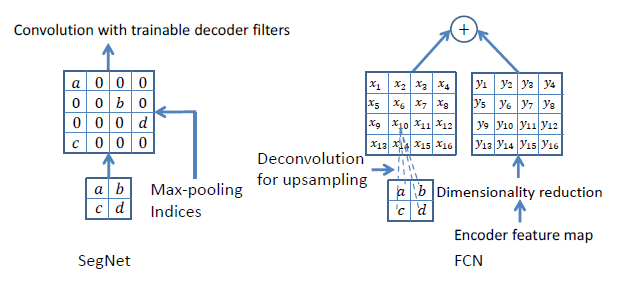

Pasted image 20240607060812.png This image compares the upsampling procedure of SegNet (left), in contrast to the standard deconvolution used by other models like FCN and UNet

✅ SegNet method of sending pooling indexes to the decoder is more memory efficient and involves less data movement during training, resulting in faster training. ❌ Pooling indexes inherently discard some spatial information that may not be recoverable, leading to less precise localization in segmentation tasks.

PSPNet

Original paper: "Pyramid Scene Parsing Network" by Hengshuang Zhao, Jianping Shi, Xiaojuan Qi, Xiaogang Wang, and Jiaya Jia. - 2017

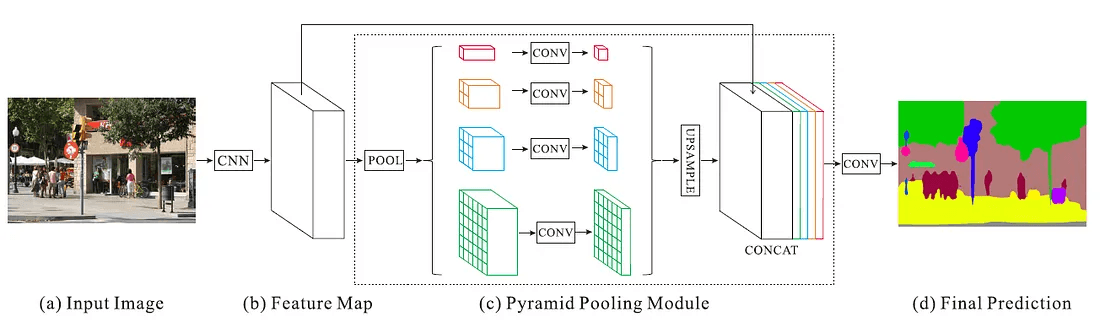

The core innovation of PSPNet is the Pyramid Pooling Module. This module is designed to capture contextual information at multiple scales. It achieves this by applying pooling operations at several grid scales, such as 1x1, 2x2, 3x3, and 6x6. These pooled features are then upsampled to the original size and concatenated together to form a robust global feature representation.

Pasted image 20240720043714.png

The first step in a PSPNet is the CNN block, quoting the paper:

Given an input image, we use a pretrained ResNet model with the dilated network strategy to extract the feature map. The final feature map size is 1/8 of the input image

Then, the novel Pyramid Pooling Module comes in:

*The pyramid pooling module fuses features under four different pyramid scales. The coarsest level highlighted in red is global pooling to generate a single bin output. The following pyramid level separates the feature map into different sub-regions and forms pooled representation for different locations. The output of different levels in the pyramid pooling module contains the feature map with varied sizes. To maintain the weight of global feature, we use 1×1 convolution layer after each pyramid level to reduce the dimension of context representation to 1/N of the original one if the level size of pyramid is N. Then we directly upsample the low-dimension feature maps to get the same size feature as the original feature map via bilinear interpolation. Finally, different levels of features are concatenated as the final pyramid pooling global feature.

Finally, a convolution layer is used to generate the final prediction map in (d).

The key innovation is pooling at different scales,which is essential for capturing features that vary in size and context within an image. E.g. 1x1 pooling captures global context by summarizing the entire feature map into a single representation ; whereas larger-scale pooling (e.g.2x2, 3x3, 6x6) captures local context at different granularities.

✅ Pyramid Pooling Module is great at understanding global context of the scene, which is crucial for accurate segmentation. Achieves SOTA results on several benchmark datasets. ❌ Can be slower and more resource-intensive compared to architectures like SegNet, U-Net, or FCN. The implementation is also more complex.

DeepLab

This is actually a family of architectures designed and open-sourced by Google. Each version enhances the previous one, here's an overview:

  • DeepLab v1: Introduced Atrous (aka Dilated) convolution as well as CRF Post-Processing. CRF was like a beautification step applied at the end, not affecting the loss and not trained – dropped in v3.
  • Deeplab v2: Introduced enhanced use of atrous convolutions by the Atrous Spatial Pyramid Pooling (ASPP) + stronger backbone like ResNet.
  • DeepLab v3: Furter improved the ASPP + batch normalization + deeper backbones
  • DeepLab v3+

Perhaps the central innovation of v1 was the introduction of atrous (aka dilated) convolutions instead of pooling layers.

  • Atrous convolution inserts spaces (or zeros) between the filter weights, effectively "dilating" the filter. As a consequence, the convolution has a larger receptive field, skipping values in between.
  • Unlike pooling or strided convolutions, atrous convolution does not inherently change the spatial dimensions
  • They are very useful for semantic segmentation, where maintaining spatial dimensions and fine details is crucial. Thus, they offer a simple and powerful alternative to deconvolutions. You don't reduce the spatial resolution in the first place, so you don't need to upsample it.

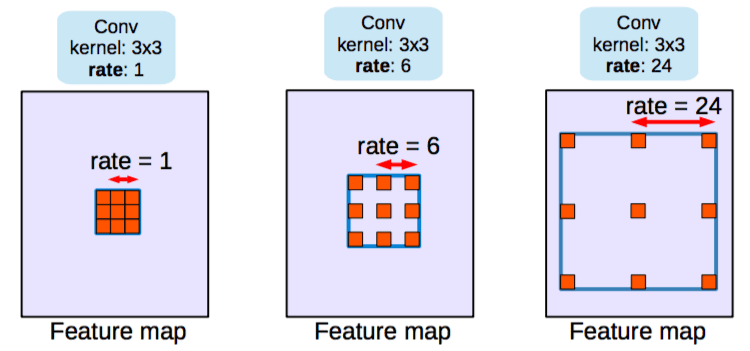

Pasted image 20240720045947.png Atrous convolutions

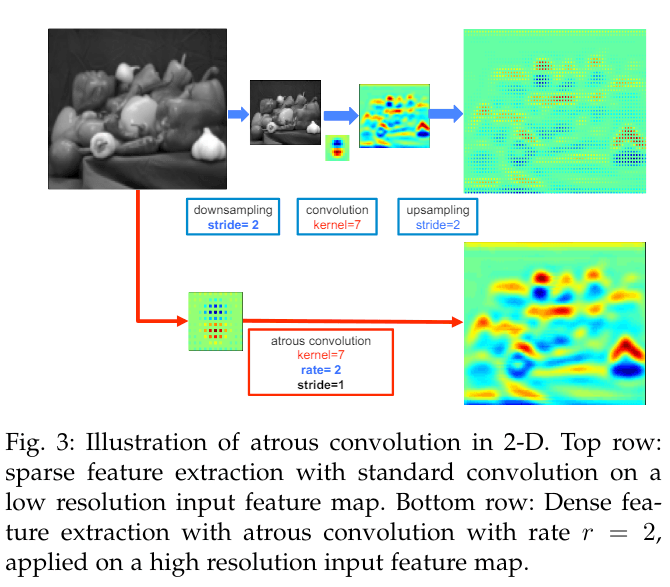

Pasted image 20240720050524.png How atrous convolutions are comparable to pooling+regular convolution

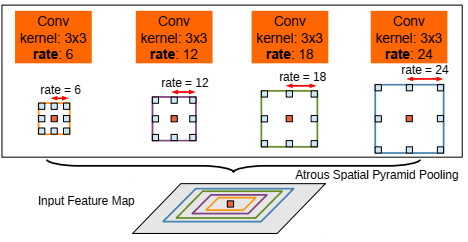

The Atrous Spatial Pyramid Pooling (ASPP) introduced in v2 has a resemblance to PSPNet's Pyramid Pooling Module. It applies multiple dilated convolutions with different dilation rates, capturing multi-scale context by probing the incoming feature map with filters at multiple sampling rates. This enables the network to capture both local and global context effectively.

Pasted image 20240720050124.png

The next version, v3, further improves the architecture by:

  • Enhancing the ASPP with image-level global features and more dilation rates
  • Removing the CRF post-processing
  • Using a deeper backbone and batch normalization
  • Introducing the atrous depth-wise separable convolution, which basically increases computational efficiency. It's basically a depth-wise convolution followed by a point-wise (1x1) convolution.

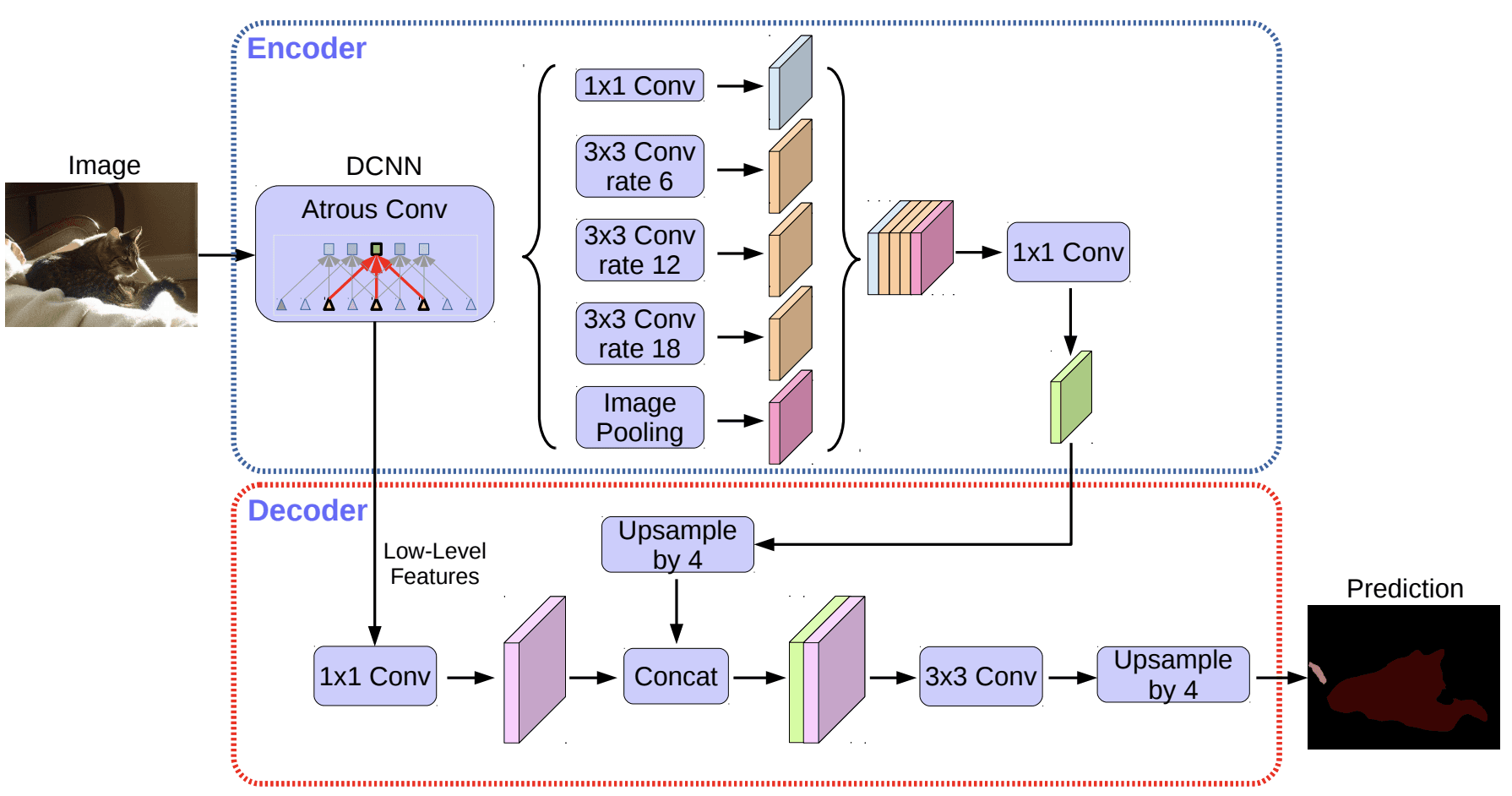

Finally, v3+ incorporates a decoder module to refine the segmentation results, particularly object boundaries:

  • The encoder remains similar to v3: A backbone (e.g. ResNet) followed by the ASPP module.
  • The newly added decoder refines the segmentation output by upsampling and concatenation with corresponding low-level features from earlier layers of the encoder (like the skip connections of the U-Net)

Pasted image 20240720051926.png

Vision Transformers

The Vision Transformer architecture (ViT) was introduced in the paper "An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale" in 2020. I dive deeper into the transformer architecture (and its successors for image inputs) in this post.

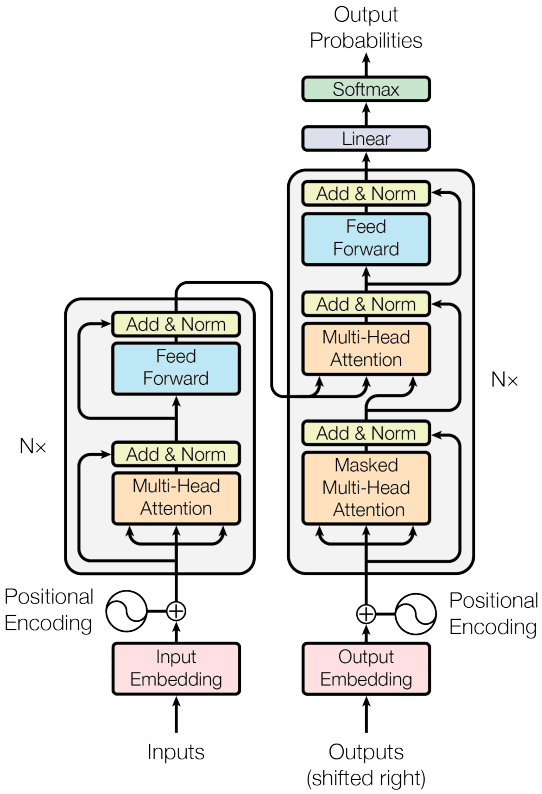

Recall the original transformer architecture, designed for natural language processing:

Pasted image 20240928223011.png

Originally designed for NLP, it works like this:

  • An input piece of text would get tokenized, then each token embedded into dense vectors and positional information added. An extra token that does not correspond to any of the inputs, the [CLS] token, is also added. This forms the input to the Encoder (left side).
  • The encoder applies multiple layers (e.g. 6) of multi-head self-attention plus a feed-forward net with normalization and residual connections. The output of the encoder is a sequence of vectors representing the contextualized embeddings of the input tokens.
  • Depending on the task at hand, the decoder may take as input just the output corresponding to the [CLS] token, which has contextual information of all the entire input. Alternatively, it may take the average of all the token representations ; or even the entire set of contextualized vectors. The decoder is very task-dependant, e.g.:
  • Classification head for sentiment analysis: The decoder takes the pooled output (e.g., the representation of the [CLS] token or the mean of all token representations) from the encoder. - This pooled representation is passed through one or more fully connected layers with an activation function (e.g., ReLU). The final layer typically uses a softmax activation to output probabilities for sentiment classes (e.g., positive, negative, neutral).
  • Standard decoder for machine translation: The decoder receives the final output of the encoder (contextualized vectors) and typically the previously generated tokens (in the case of autoregressive models). This is the architecture described in the image above, where the decoder takes its own output to generate even more outputs.

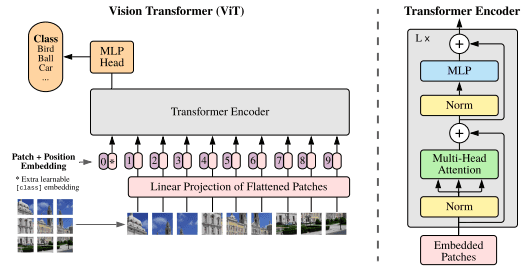

ViT explore how to reuse this architecture for images. The solution is quite elegant: let's find a way to encode images as sequences of embeddings, and the rest of the architecture can be reused without any modification.

Pasted image 20240928225150.png The image is split into small patches. Each patch is flattened, encoded into an embedding of the desired size, and positional embedding is added to preserve structural information. Ingenious!

Again, depending on the actual task at hand, the decoder is going to be different. For image classification, the special [CLS] token can be added to the sequence, or the representation from a specific patch (often the first one) is used for the final classification task. This specific contexctualized output from the encoder can be passed through a fully connected layer with softmax activation to predict the class labels.

For semantic segmentation, the topic of this post, it is a little more tricky, and the following sections will present vision transformer architectures that decode the encoded input into an output segmentation.

SEgmentation TRansformer

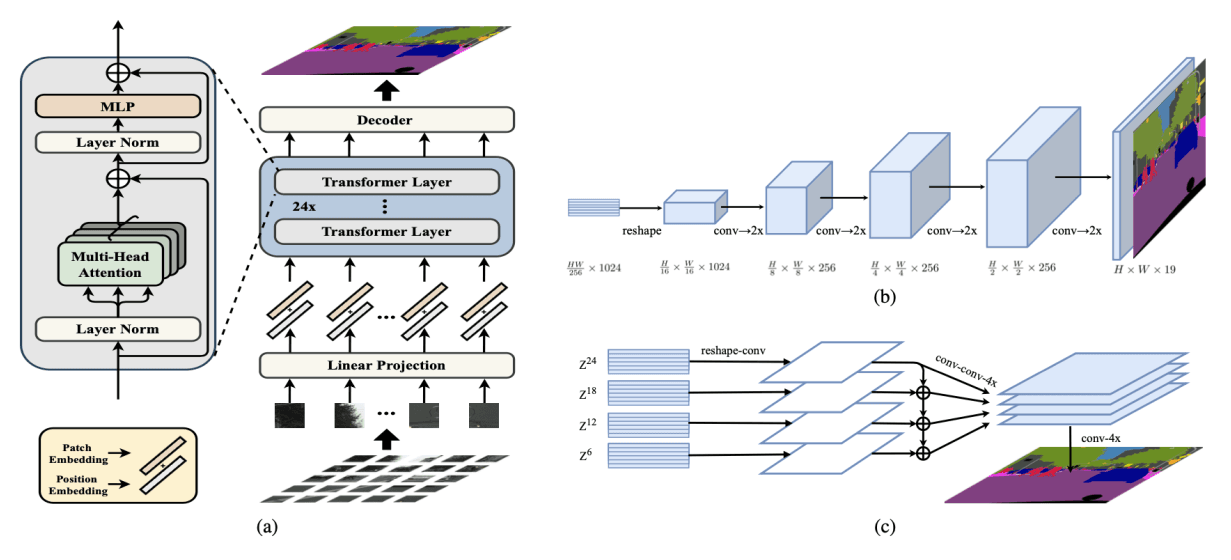

SETR uses the encoder exactly as described in the previous section, and proposes three different decoders to obtain the final segmentation:

a) SETR Naive: This approach simply reshapes the sequence of embeddings (from the encoder) back into a 2D feature map and then applies bilinear upsampling to match the original input image resolution. The upsampling is quite coarse and might not capture fine details required for pixel-level segmentation. b) SETR-PUP (Progressive Upsampling Decoder): In this approach, the patch embeddings are progressively upsampled in stages using transposed convolutions. Each stage doubles the resolution of the feature map until it reaches the original resolution. Allows for smoother and more refined upsampling, improving the ability to capture finer details in the segmentation map. c) SETR-MLA (Multi-Level Aggregation Decoder): This decoder aggregates features from multiple layers of the Transformer encoder. It captures hierarchical information from different depths of the encoder, combining features of varying granularity. The combined features are then upsampled to the final resolution.

Pasted image 20240929023037.png One key issue with ViT is the loss of spatial information every time that an image patch gets flattened and embedded into a 1D vector: we lose the intra-patch spatial structure.

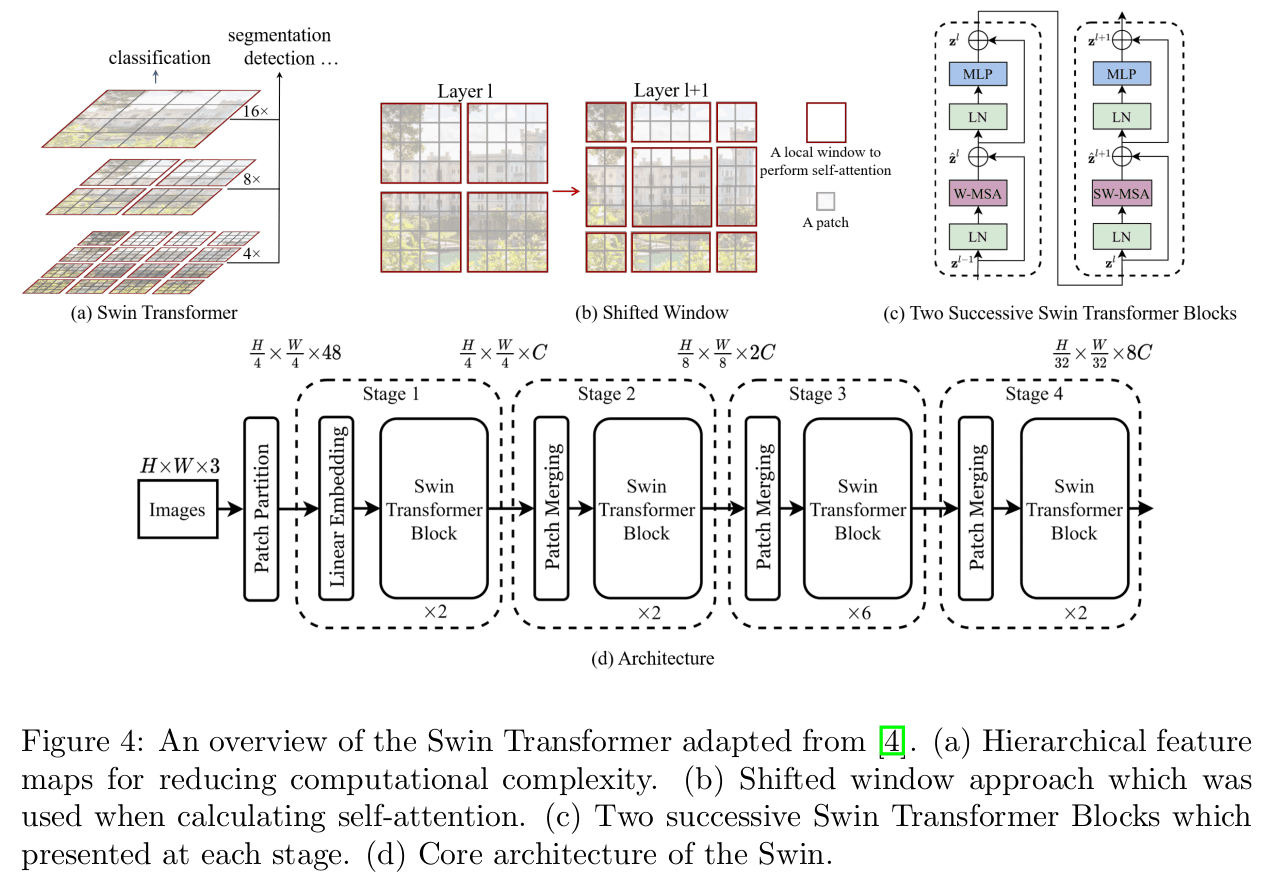

Swin Transformer

Hierarchical Vision Transformer using Shifted Windows was proposed as a general purpose backbone for computer vision tasks such as image classification and dense prediction (e.g. semantic segmentation). Key points:

Hierarchical Feature Maps (CNN like)

Unlike ViT, which works on non-overlapping patches, Swin Transformers build hierarchical feature maps like a convolutional neural network (CNN). This means that as you go deeper into the network, the spatial resolution of the feature maps becomes smaller while the channel dimension increases (like in CNNs).

This hierarchical structure allows Swin to handle high-resolution images more efficiently, which is crucial for tasks like segmentation, where pixel-level details are important ; because we can incorporate skip connections very much like U-Net does.

Shifted Window Self Attention

In the standard Transformer, self-attention is computed globally across all tokens (patches), which can be computationally expensive for large images. Swin introduces the concept of non-overlapping windows. Instead of computing attention globally, self-attention is calculated within each window (local region) of the image. This reduces the computational complexity because each window is much smaller than the full image.

To capture interactions across windows, Swin shifts the windows by a few pixels in subsequent layers, allowing the model to connect information between adjacent windows. This is the shifted window mechanism.

Because Swin Transformer only computes self-attention within windows, the computational cost scales linearly with image size, compared to the quadratic scaling in standard ViTs.

Pasted image 20240929032947.png

Swin Transformer acts as a backbone—it extracts features from the input image, reducing the spatial dimensions and increasing the number of channels. By the end of the encoder (the Swin Transformer backbone), you have a feature map that’s smaller in spatial size (e.g., 1/16 or 1/32 of the original input) but with more channels (e.g., 768 or 1024 channels).

The key task of the decoder is upsampling the downsampled feature maps back to the original resolution. This is often done using techniques like:

  • Bilinear/Deconvolution (Transposed Convolution): Standard upsampling operations that resize the feature map.
  • Skip Connections: Like U-Net, the decoder can take feature maps from earlier (higher-resolution) stages of the encoder and combine them with the upsampled features, helping to preserve fine details.
  • Feature Pyramid Network (FPN) takes the multi-scale feature maps from different stages of the Swin backbone (e.g., at 1/4, 1/8, 1/16 resolution).

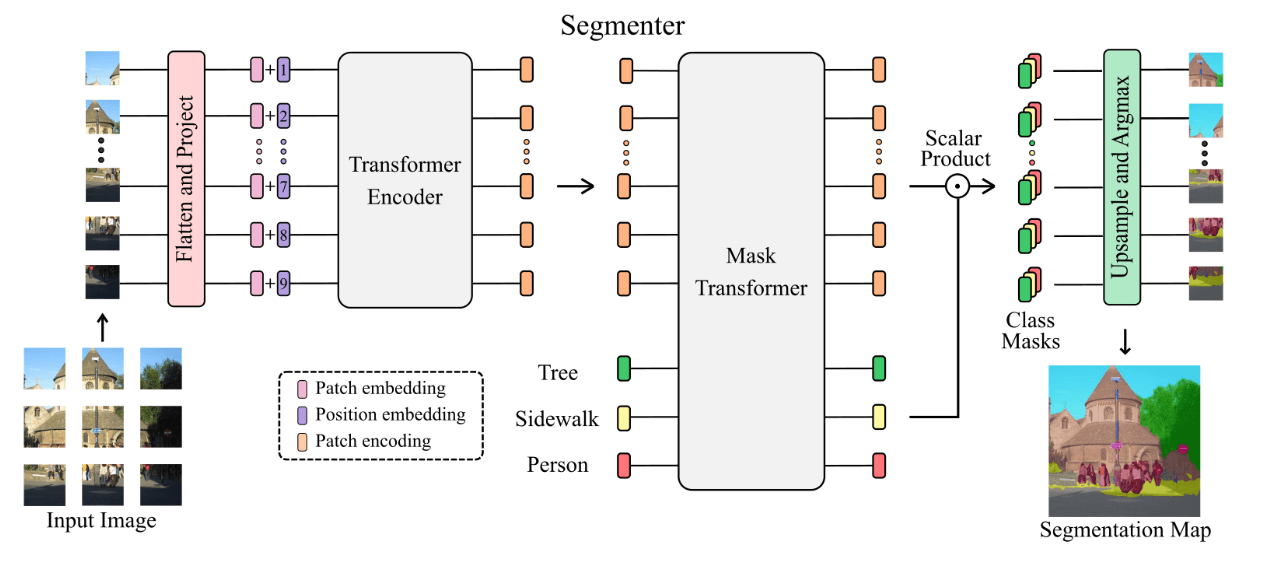

Segmenter

Segmenter is a pure transformer model for segmentation tasks.

The patches, along with their positional embeddings, are passed through multiple transformer encoder layers. These layers apply self-attention to capture relationships between patches, resulting in a set of contextualized patch embeddings that contain both local and global information.

The key difference between Segmenter and other transformer-based models like ViT lies in its decoder, which is specialized for segmentation tasks.

Segmenter directly predicts segmentation masks for each patch. It does this by adding a mask token for each class of interest to the patch tokens and learning how to predict the class label for each patch.

Pasted image 20240929034749.png For each patch embedding output from the ViT encoder, Segmenter predicts a probability distribution over the segmentation classes (for each pixel within that patch). These probabilities are predicted for every patch at the same resolution they were initially embedded.

Instead of progressively upsampling feature maps as you would in traditional convolutional networks or U-Net, Segmenter directly outputs per-patch segmentation predictions.

Transformers vs CNN approaches

CNN-based models are generally inefficient when processing global image context and ultimately result in a sub-optimal segmentation. The reason for the sub-optimal segmentation of the convolution-based approaches is that convolution is a local operation which poorly accesses the global information of the image. But the global information is crucial where the global image context usually influences the local patch labeling. But modeling of global interaction has a quadratic complexity to the image size because it needs to model the interaction between each and every raw pixel of the image.

  • Transformers excel in global context modeling but are computationally heavy and data-hungry.
  • CNNs are efficient and handle local detail well but struggle with global context without added complexity.
